crystal.Spritesheet

Spritesheets are the combination of a texture holding multiple frames of animation, and metadata on how to play said animations. The recommended way to create spritesheets in a format Crystal can load is to export them from Aseprite.

When exporting, make sure to:

Check both Output File and JSON Data
Under JSON Data, select Array and not Hash

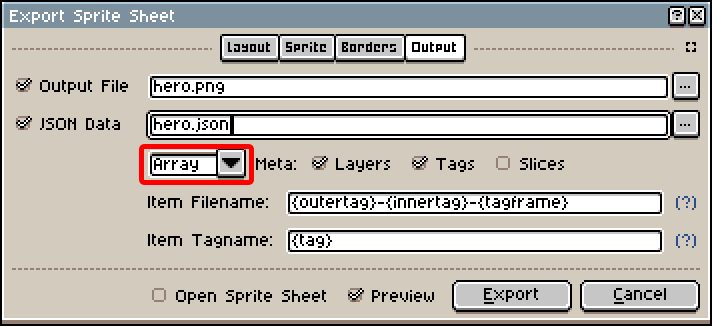

Aseprite Export Dialog

When loading the resulting .json file in Crystal, each Aseprite Tag is imported as an animation. If the timeline has nested tags, the inner tags will become sequences instead.

For example, consider this timeline setup in Aseprite:

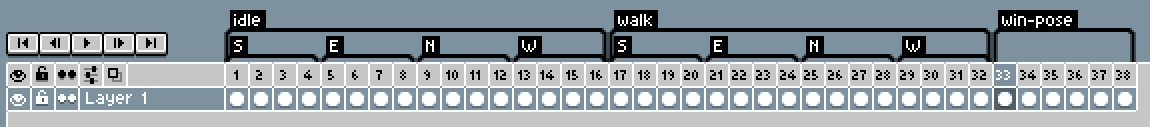

Aseprite Timeline

Once loaded, this spritesheet contains:

One idle animation containing 4 sequences (S, E, N, W).
One walk animation containing 4 sequences (S, E, N, W).
One win-pose animation containing a single sequence named default.

The AnimatedSprite component can drive playback of spritesheet animations and draw them over time.

Constructor

You cannot construct spritesheets manually. Use crystal.assets.get to load them from disk.

Methods

Name	Description
animation	Retrieves an animation by name.
image	Returns the `love.Image` containing the texture data for this spritesheet.

Examples

local spritesheet = crystal.assets.get("assets/sprites/hero.json");
local walk = spritesheet:animation("walk");
local sequence = walk:sequence("N");
print(sequence:duration());

local spritesheet = crystal.assets.get("assets/sprites/hero.json");
local win_pose = spritesheet:animation("win_pose");
local sequence = win_pose:sequence(); -- This animation only has one sequence, so we can omit its name
print(sequence:duration());
